Models:

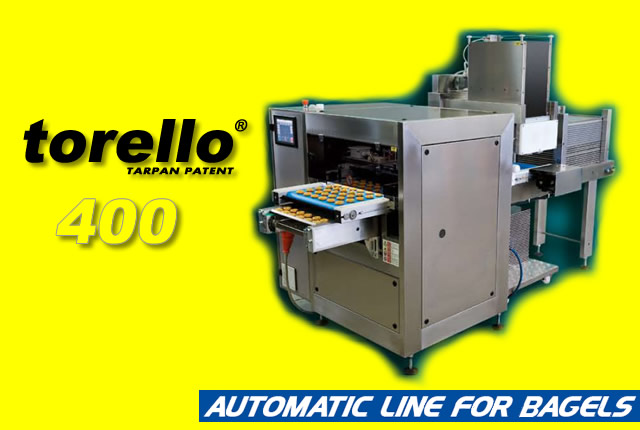

The automatic line for bagels is a machine which allows a non - stop process of production, by means of an extruder drawing the doughand of a moulder making the bagels.
The drawing is the result of a pressure extrusion of the dough. These strings are then layed on a unbroken con veyor belt and cut by a guillotine - shaped cutting set.
This making of the bagels or of other ring - shaped products is due to the moulder, which allows an excellent toroidal closing by a radial pressure on the ends of the dough strings.
This line is designed and built for a new process of production which allows the use of a dough with a consistency until 65% of humidity, according to the flour type.
The final products is therefore tastier and more fragrant, and it keeps the charateristic of a hand - made products.
Tarpan company crowns the production line by manufacturing a series of accessories and component, in order to satisfy all their customers demands:

TYPE MACHINE SIZE (mm)
  400
MACHINE LENGTH without authomatic trays (mm)
  1800
MAXIMUM LENGTH + SCORRITEGLIE (mm)
  2800 + 1500
MAXIMUM WIDTH (mm)
  1200
MAXIMUM HEIGHT (mm)
  1800
TOTAL WEIGHT (Kg)
  640
PRODUCTIVITY MAX PER HOUR (cycles per minute)
  80
PRODUCTIVITY PER HOUR (Kg)
  140
TARALLO EXTERNAL DIAMETER (mm)
  from 25 to 100
LOADED HOPPER CAPACITY (Kg)
  40 about
